Sale!

MT-7063

(1199 customer reviews)
PoE & LAN Cable Tester
Vəziyyəti : Yeni
Anbarda qalan : 10

41.00AZN

In Stock

Description

PoE & LAN Cable Tester
Vəziyyəti : Yeni
Anbarda qalan : 10

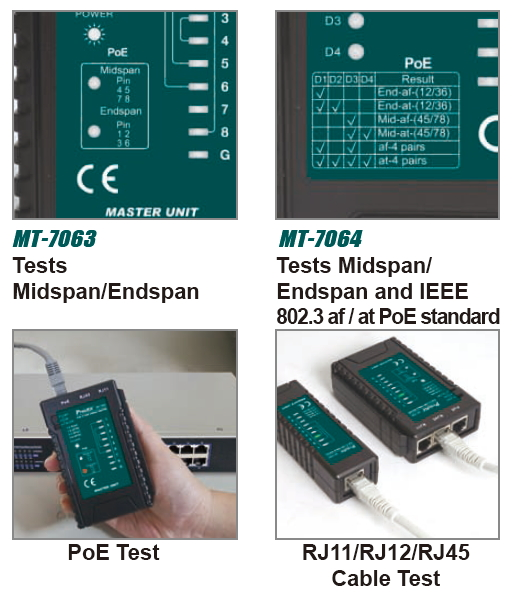

PoE Tester

  • Easily tests Ethernet network for power over Ethernet existence
  • Quickly detects the type of the Power Sourcing Equipment (either Endspan or Midspan)
  • MT-7063 is a economy type only for detecting Midspan/Endspan.
  • MT-7064 is an advanced type which can easily identify IEEE 802.3 af/at PoE standard and Midspan/Endspan

Cable Tester

  • Check the RJ11/RJ12/RJ45 pin to pin cable map
  • Automatically runs all tests and checks for continuity, open, short and crossover wire pairs
  • Cable mapping up to 300M



Specifications MT-7063 MT-7064
Max. distance of cable map 300m
Compatible connectors RJ45(8 pin) & RJ11(6P/6C/4C/2C) & RJ12 & PoE
Cable types tested RJ45 Lan cable Cat 5、5e、6(UTP/STP)
RJ11/12 Telephone Cable Cat 3 (6P/2C/4C/6C)
Cable map indication 8 LED,Fast/Slow dual speed
Shielded indication Yes
PoE indication(Master) Midspan/Endspan 802.3 af/at PoE standard
and Midspan/Endspan
Live telecommunication
equipment test and router test
Yes
Dimension (L×W×D) Master:103×66×27 mm , Remote:103×35×27 mm
Battery type DC 9.0V (not included)
Weight 130g(Not including battery)
