LCD Multifunction Cable Tester
Vəziyyəti : Yeni
Anbarda qalan : 10

LCD display, Wire tracing, LAN cable mapping, 9 different tone cable status indication



  • Display test result on large LCD for easy reading and cable status identification

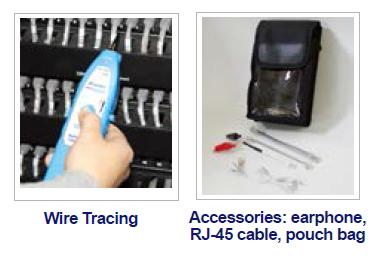

  • The wire can be tracked directly in connection with Ethernet service, router, and PC terminal
  • Validate and troubleshoot wiring on RJ11/RJ45 cables, Coaxial cable, USB cable, IEEE 1394 cable
  • Test cable status for continuity, shorts, opens,miswired, crossover
  • 9 different tones selection for convenience use under different environment condition
  • All installation and maintenance fields of telecommunication, networking, cable TV and more







MT-7059 Transmitter specifications
Indicator LCD 53X25mm,with back light
Tone frequency 225kHz
Max. distance of transmission 2km
Max. distance of cable map 300m
Max. working current ≦70mA
Tone mode 9 Tone adjustable
Compatible connectors RJ45(8 pin)、RJ11(6 pin)、BNC、
USB、IEEE 1394
Continuity test LCD (SHORT)
Max. signal voltage 1.5Vp-p
Function selection 3 Push button & 1 Power switch
Function and faults LCD display LCD display
(Wiremap;Tone;Short;
Noadapter; UTP;STP;
Low battery)
Cable map indication LCD (#1~#8)
Shielded indication LCD (#9)
Voltage protection AC 60V / DC 42V
Low battery display LCD (6.5V)
Battery type DC 9.0V(NEDA 1604/ 6F22 DC9V ×1pcs)
Dimension (LxWxD) 185X80X32mm





MT-7059 Receiver specifications
Frequency 225kHz
The Max. working current ≦70mA
Ear jack 1
LED illumination 2 LEDs
Battery type DC 9.0V(NEDA 1604/ 6F22 DC9V×1)
Dimension (LxWxD) 218X46X29mm





MT-7059 Remote unit specifications
Compatible connectors RJ-45(8 pin)、RJ-11(6 pin)、BNC、USB、IEEE 1394
Dimension (LxWxD) 107X30X24mm
