Sale!

MT-1706

(266 customer reviews)
3-5/6 True RMS Multimeter
Vəziyyəti : Yeni
Anbarda qalan : 10

52.00AZN

In Stock

Description

3-5/6 True RMS Multimeter
Vəziyyəti : Yeni
Anbarda qalan : 10

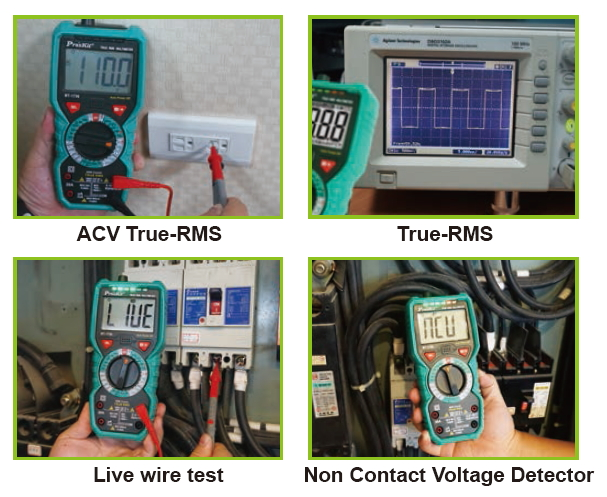

MT-1706 3-5/6 True-RMS Multimeter is designed for accurate measurements, ideal for a wide variety of electrical and electronic testing applications.



  • Full functions
  • ACV/ACA True-RMS
  • NCV detector
  • Non Contact Voltage Detector
    • tests AC 90-1000V

    Voltage level indicator

    • To show the voltage signal intensity

    Large LCD w/ Backlight

    • Design with 3 5/6 digits 5999 counts provide accurate, easy to use and great to understand reading even in dark area.

    29 Positions, Full Functions

    • Special design for ACV/ACA True-RMS measurement.
    • Measuring DCV/ACV/DCA/ACA/resistance/transitor/capacitance/Hz duty cycle/temperature/live wire test and diode.

    Friendly Extra Functions

    • Continuity with beeper, duty cycle, data hold, auto power off, low battery indication and Input alert protection ensures uninterrupted operation and long life.





Specifications MT-1706
DCV 600mV/6V/60V/600V/1000V ±(0.5%+3d)
ACV TrueRMS 6V/60V ±(0.8%+5d)
600V/750V ±(1%+10d)
Frequency Response:40Hz-1KHz
DCA 60uA/60mA/600mA±(0.8%+3d)
20.00A±(1.2%+3d)
ACA TrueRMS 60mA/600mA±(1%+3d)
20.00A±(1.5%+3d)
Frequency Response:40Hz-1KHz
Frequency (Hz) 9.999Hz/99.99Hz/999.9Hz/9.999KHz/
99.99KHz/999.9KHz/9.999MHz ±(1.0%+3d)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ±(0.8%+3d)
60MΩ±(1.2%+3d)
Capacitance 6nF/60nF/600nF/6uF/60uF/600uF/6mF ±(4.0%+3d)
60mF ±(5.0%+3d)
Temperatures -20°C~1000°C/-4°F~1832°F±(1.0%+3d)
Power 4 x 1.5V AA Batteries (not included)
Weight 323g (without battery)
Dimension 192 mm(L)×89 mm(W)×55mm(H)
Individual packing Color Box
